Hydrovac work and traditional digging are two different approaches to the same problem: moving dirt to install, repair, or verify underground utilities. Hydrovac uses pressurized water and vacuum to loosen and remove soil. Traditional digging uses mechanical excavation. Each has specific advantages. This guide walks through the differences.
The Core Difference
Vacuum excavation is non destructive; it loosens soil with water and vacuums the slurry away without touching nearby utilities. Mechanical excavation uses blades or buckets that can damage anything they contact. Different safety profiles for utility work.
How Hydrovac Excavation Works
Pressurized Water
High-pressure water (often 2,000-3,000 psi) directed at soil through specialized nozzles. Breaks soil into slurry.
Vacuum System
Industrial vacuum pulls slurry into the onboard tank. Tank capacity typically 10-20 cubic yards.
Hose Operation
The operator uses a hose to work the water and vacuum. Flexible, precise control.
Non-Destructive
Water doesn’t cut utilities. Soil removed without touching anything underneath. Primary advantage.
How Traditional Digging Works
Mechanical Equipment
Backhoes, excavators, trenchers. Blades and buckets physically cut and move soil.

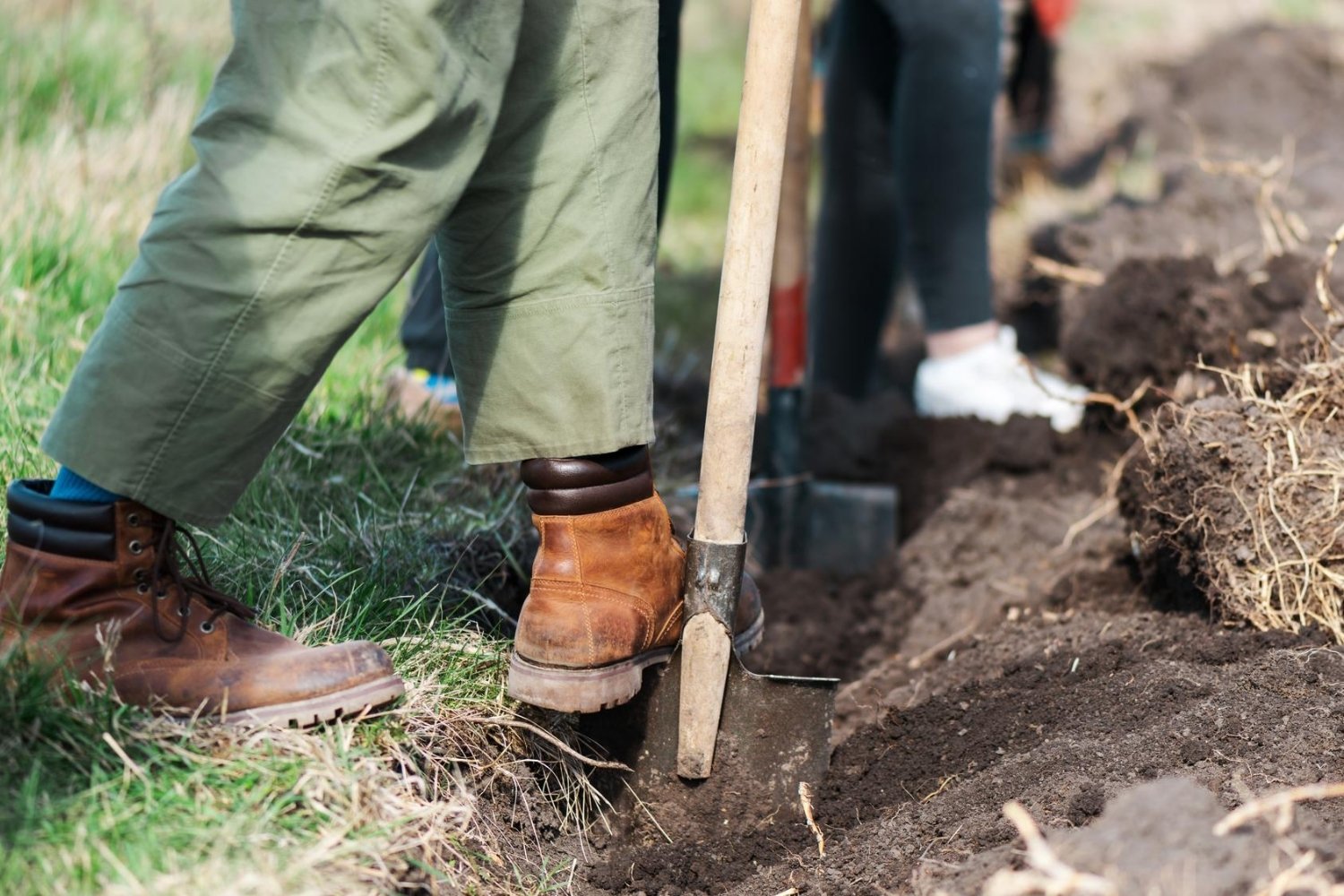

Hand Digging
Shovels and manual tools. Precise but slow. Standard practice near utilities.
Speed
Mechanical digging fast for large volumes of soil in open ground. Not appropriate near utilities.
Destructive Potential
Any contact with utility causes damage. Serious consequences are possible.
When Hydrovac Excavation Wins
Near Utilities
Verified safe near marked utilities. Primary application. Standard for tolerance zone work.
Potholing
Verifying buried utility positions. Hydrovac standard method. See our potholing article for details.
Fiber and Cable Work
Fiber optic is especially sensitive. Hydrovac prevents damage.
Gas Line Proximity
Gas line strikes are catastrophic. Hydrovac is mandatory in some jurisdictions.
Hard-to-Access Areas
Confined spaces, around obstacles. A hose-based system fits where equipment doesn’t.
Environmentally Sensitive
Sensitive landscaping, root zones. Hydrovac minimizes damage.
When Traditional Digging Wins
Open Ground
Clear excavation with no utilities. Mechanical digging is faster and cheaper.
Large Volume
Hundreds of cubic yards. Mechanics are much more efficient.
Deep Excavation
Deep foundations, large pits. Mechanical equipment is better suited.
Hard Ground
Rock, frozen ground, very dense soil. Hydrovac slow or ineffective.
Short Durations
Quick residential utility connections. Simple scope. Traditional fine.
Cost Comparison
Hydrovac Excavation
300 – 600 per hour for truck and crew. Project-based pricing variable. Higher per-cubic-yard cost.
Mechanical
100 – 300 per hour for equipment and operators. Lower hourly rates. Lower per-cubic-yard cost in open ground.
Total Cost
For small, utility-sensitive work: hydrovac often lower total cost (strike avoidance factor). For large open excavation: mechanical lower.
Risk Factor
Hydrovac eliminates strike risk cost. Mechanics include strike insurance in effective cost.
Safety Considerations
Hydrovac Safety
Water and vacuum are generally safer. Enclosed slurry tank. Minimal flying debris. OSHA excavation standards still apply.
Mechanical Safety
Equipment hazards, trenching hazards, strike risks. Multiple OSHA regulations apply.
Operator Training
Hydrovac operators are specifically trained. Mechanical operators require different training.
PPE
Both methods require full PPE. Hydrovac adds hearing protection and chemical splash protection in some situations.
Environmental Impact
Water Usage
Hydrovac uses significant water. Water recycling partial. Disposal of slurry considerations.
Slurry Management
Hydrovac slurry disposed properly. Environmental permit considerations in some jurisdictions.
Dust
Mechanical digging produces dust. Hydrovac operation produces none. Advantage for sensitive areas.
Noise
Both methods produce noise. Hydrovac trucks are loud but similar to mechanical.
Permit and Compliance Considerations
One-Call
Both methods require 811 notifications. Standard across methods.
ASCE Standards
ASCE 38-22 Quality Level A requires physical exposure (potholing with hydrovac typically). Mechanics don’t meet this level.
Insurance
Strike insurance costs reflect method choice. Hydrovac lower premiums for sensitive work.
Agency Requirements
Some utility companies require hydrovac within tolerance zones. Mandatory not optional.
Equipment Investment and Hydrovac Excavation Economics
Hydrovac Truck
300,000-600,000 capital cost. Specialized vehicles. Maintenance and operator training are significant.
Mechanical Equipment
Range of sizes. Backhoe $50,000, large excavator $300,000+. Broader equipment pool.
Operator Specialization
Hydrovac operator specialized role. Mechanical operators are more transferable.
Utilization
Hydrovac trucks need steady utility work volume to justify investment. Mechanical equipment broader applications.
Choosing Between Methods
Project Type
Utility work near existing utilities: hydrovac. Open excavation: mechanical. Simple classification first.
Soil Conditions
Soft soil: both work. Rock or frozen: mechanical. Clay: hydrovac fine.
Safety Risk
Critical utility strike risk: hydrovac mandatory. Low-risk open: mechanical fine.
Permit Requirements
Some permits require hydrovac. Verify project-specific.
Budget Considerations
Total cost including risk. Not just hourly rates.
Hybrid Approaches
Mechanical Bulk, Hydrovac Precision
Mechanical excavation for bulk soil removal. Hydrovac for final feet near utilities. Common and efficient.
Hydrovac + Hand Digging
Hydrovac to within inches, hand digging to final utility. Standard practice.
Trenchless + Mechanical
HDD for utility crossings, mechanical for connection pits. Common on larger projects.
Working with Fortress Underground
Fortress Underground offers the hydrovac dig services across Ohio, Wisconsin, Tennessee, and surrounding regions. Potholing, daylighting, confined-space excavation. See services and contact details at our website.
What to Expect from Hydrovac Excavation Service
Site Evaluation
Pre-work assessment. Access, water availability, slurry disposal planning.
Setup
Truck positioning. Water and vacuum systems operational. 15-30 minutes typically.
Excavation
Methodical work. Faster than hand digging; slower than mechanical in open ground.
Documentation
Potholed utilities photographed and measured. Report provided.
Backfill
Site restored. Specific backfill requirements per project.
Winter Operation
Hydrovac water freezes in cold weather. Winter operation requires: hot water systems, protected equipment, specific timing. Air vacuum excavation alternative for frozen conditions.
FAQs
What is hydrovac excavation in simple terms?
Water pressure loosens soil; vacuum lifts it away. Non-destructive excavation near utilities.
When should I use hydrovac vs mechanical?
Hydrovac near utilities. Mechanical for open ground and large volumes. Each has specific best use.
How much does hydrovac cost?
300-600 per hour. Project pricing variable. Higher hourly than mechanical.
Can hydrovac work in winter?
Yes with hot water systems and precautions. Air vacuum alternative for frozen soil.
Where do I get Fortress hydrovac services?
Visit our website for services and consultation.
